UAVIONIX SKYBEACON + SKYSENSOR ADS-B IN / OUT BUNDLE FAA TSO

$2,989.00

Buy aviation products safely

Ships from Distributor directly to You
Secure Payment Methods
Available 24/7, Purchase at any time.

Safe Payment

SKU: UAX-80005-01 Categories: ADS-B, Antennas, Avionics Tags: ADS-B, ADS-B In, ADS-B Out, UAvionix

Description

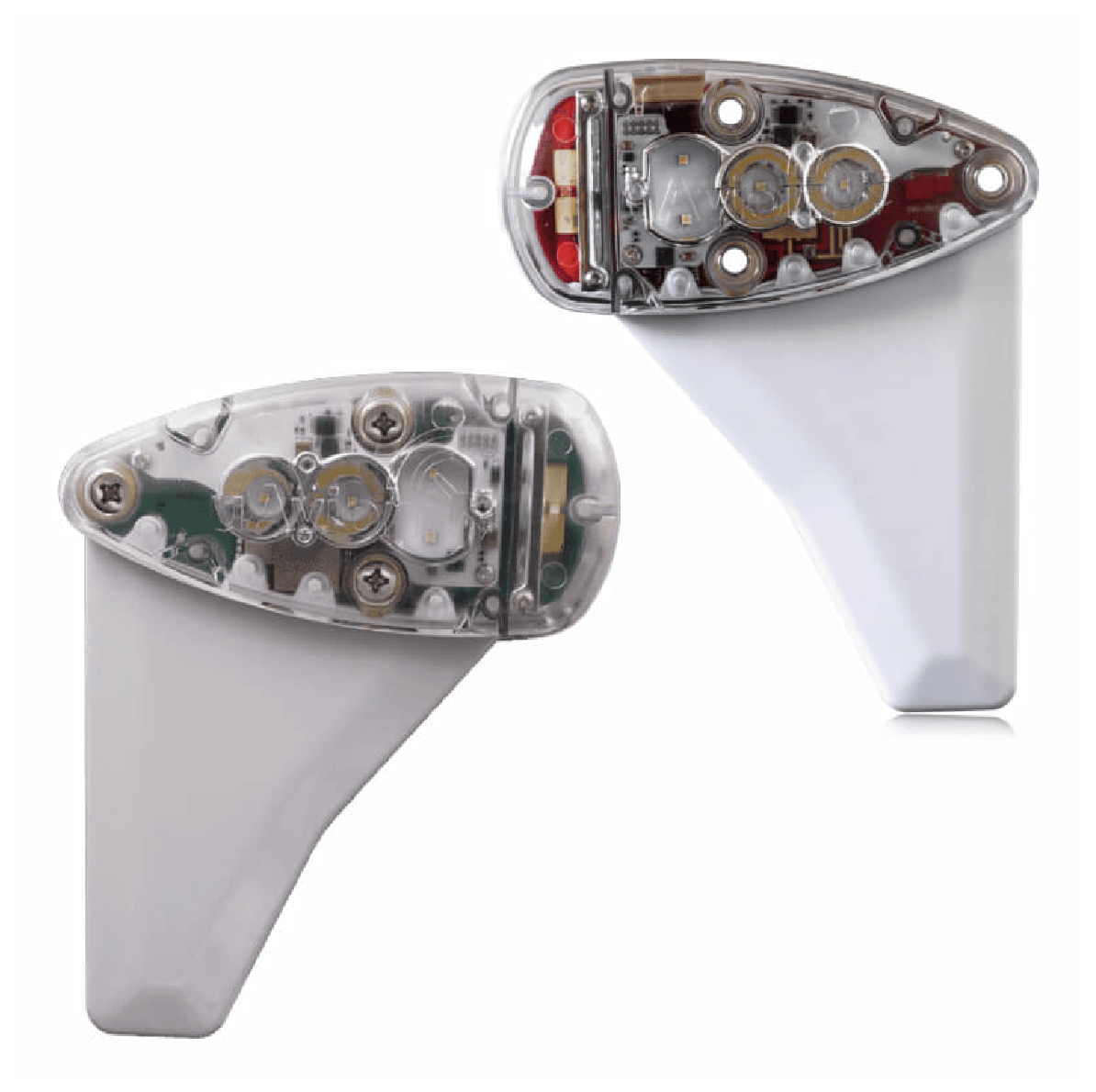

This uAvionix skyBundle includes a TSO skyBeacon and a certied skySensor for a complete 2020 compliant, near zeroinstall, Class B1S ADS-B UAT transmitter with WAAS GPS and ADS-B in solution integrated into wing tip position lights.

The skyBEacon transcoder decodes replies from legacy Mode C transponders. 14 CFR §91.227 compliant. Smart phone configurable over WiFi. skyBeacon is a revolutionary new way to equip ADS-B. Simply replace your existing navigation light with skyBeacon and you are ADS-B compliant for 2020.

2020 Compliance
Mounts in under 10 minutes
Lowest total cost of ownership of any ADS-B Out solution

Install in Minutes

Installation is as simple as replacing the aircraft position light.
Simply replace the aircraft position light, that’s it! No airframe modifications or additional antennas are required. Plus, it works with any Mode C or Mode S transponder. skyBeacon installation uses the existing mounting location, breaker and wiring, with 3 screws and 3 wires. The transponder data is provided via the existing aircraft wiring system using the power transcoder.

Remain Anonymous

Just because you are ADS-B equipped, doesn’t mean you want to be tracked. With skyBeacon’s Anonymous Mode, your aircraft identification remains hidden from the ADS-B OUT signal while squawking 1200. Anonymous Mode keeps the skies safe while protecting your privacy.

Self-Contained WAAS GPS

A built-in WAAS GPS provides skyBeacon with rule compliant position data for ADS-B transmission. No additional wiring or external GPS antenna mounting is required.

Works with Your Existing Mode C Transponder

uAvionix’s patented power transcoder technology seamlessly communicates with your existing transponder, any transponder, over your aircraft’s electrical system. tailBeacon and skyBeacon are the only UAT ADS-B OUT devices on the market that work with Mode S transponders.

Instant Setup and Configuration

Mechanically installing skyBeacon is the first easy step. With uAvionix’s mobile app, configuration is just as simple. Our mobile application (available for both Apple iOS and Android) guides your installer through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets.

Wingtip Adapters

If your wingtip or lighting configuration is not supported by skyBeacon, you can purchase a fairing adapter kit for various aircraft.
301 fairing (left) Aircraft Compatibility:

150L, 150M
152
175C
180G, 180H
182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N
185, 185A, 185B, 185C, 185D, 185E, A185F
P206E, U206E

302 fairing (left) Aircraft Compatibility

172L, 172M, 172N, 172P, 172Q, 172R, 172S
172RG
177B, 177RG
180J, 180K
182P, 182Q, 182R, 182S, 182T, R182, T182, TR182
185, 185A, 185B, 185C, 185D, 185E, A185F
U206F, U206G
TU206F, TU206G

Specifications

Specification

- Input Voltage: 11-31V DC
- Operating Power: 3watts
- Size: 124x116x48mm
- Weight: 90grams
- SDA/SIL: 2/3
- Operating Temp: -45 to 80°C

978MHz UAT Transmitter

- - Power Classification: DO-282B Medium Power

WAAS GPS

- - - Tracking: -166dBm
    - Reacquisition: -160dBm
    - Cold Start: -148dBm

LED Position Light

- - - Color: Aviation Red
    - Intensity: 40 candelas

Wi-Fi Configuration

- - - Physical: 802.11b/g/n
    - App Compatibility: iOS, Android

Power Transcoder

- - Decodes Mode A and Mode C via DC input

Additional information

Weight	3 lbs
Dimensions	20 × 10 × 10 in
