Frequencies Covered
118-137 MHz

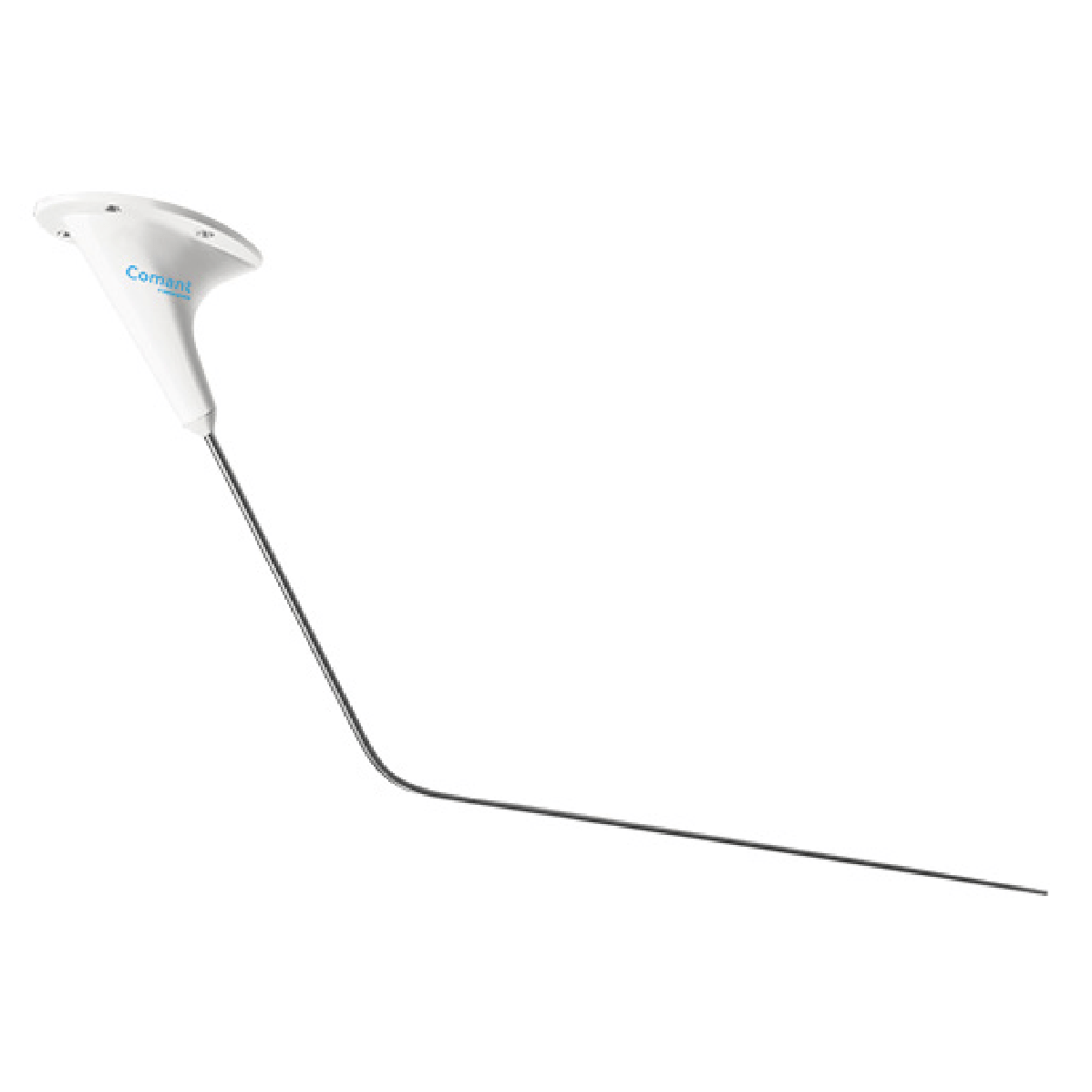

Designed specifically for mounting to the underside of an aircraft providing excellent radiation coverage for air-to-ground VHF communications. Bent configuration makes it ideally suited for helicopters and low wing aircraft.
The CI 122 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers 118 to 137 MHz frequency associated with the DO-186A MOPS.
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.
Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.
|
MODEL- CI 122 VHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
118-137 MHz
|
|
VSWR
|
3.0:1 Maximum
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms
|
|
Power
|
50 Watts
|
|
Mechanical
|
|
|
Weight
|
0.75 lbs. Max.
|
|
Height
|
18.50 in. Max.
|
|
Material
|
Cast Housing / Stainless Whip
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC (Female)
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +85ºC
|
|
Altitude
|
50,000 ft.
|
|
Airspeed
|
350 Knots TAS
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160D
|
|
FAA TSO
|
C37d, C38d
|
|
Gasket
|
|
|
B12607-3
|
Cork Neoprene
|
