ARTEX ELT 345 GPS / 406 / 121.5 WITH WHIP ANTENNA FAA TSO

Description

Note: Standard baud rate is 9600. Baud rate can be adjusted to match your GPS unit. If you require the baud rate to be 4800 for a portable GPS unit, please use special instructions during checkout.

Take to the skies with confidence with the ELT 345. This emergency locator transmitter is equipped via NAV interface, so if you run into an emergency, search and rescue teams will be given your aircraft location in less than a minute, within 100 meters. In addition to providing position accuracy, the ELT 345 transmits on 406 MHz and 121.5 MHz frequencies. Like all our products, this ELT is built to surpass industry standards, and ensure you’ll get the help you need. Be Prepared for the Unpredictable: – Manual and automatic activation – Two-wire remote switch – Flexible installation – Stainless steel mounting bracket – Built-in navigational interface

When an emergency happens, rely on the same brand that leading aircraft manufacturers trust for first-class quality, superior technology, and outstanding customer service. The new ARTEX ELT 345 is built to the industry’s most stringent quality management standards to ensure the ELT works the first time, every time. The ARTEX ELT 345 transmits on 406 MHz and 121.5 MHz frequencies while providing positon accuracy thanks to the built-in GPS navigational interface. GPS data is embedded within the first emergency transmission and provides Search and Rescue personnel with the aircraft location, within 100 meters, in less than a minute. The ELT 345 boasts an industry low price for an ELT providing the same quality and performance on which the ARTEX brand was built.

FAA TSO C126b approved.

Installation:

• The ARTEX ELT 345 can be activated manually (via cockpit remote switch or ELT switch) or automatically (the G-Switch senses a 2.3G or greater impact), and alerts the closest Search and Rescue agency of your emergency. The 406 MHz signal, containing your GPS coordinates, is transmitted to the Cospas-Sarsat satellites and relayed to the Mission Control Center where it is immediately routed to the nearest Search and Rescue agency. Your beacon’s registration will tell first responders who you are and the beacon itself lets them know where you are to within 100 meters. Finally, the local 121.5 MHz homing signal assists Search and Rescue forces to identify your exact location.

Specs:

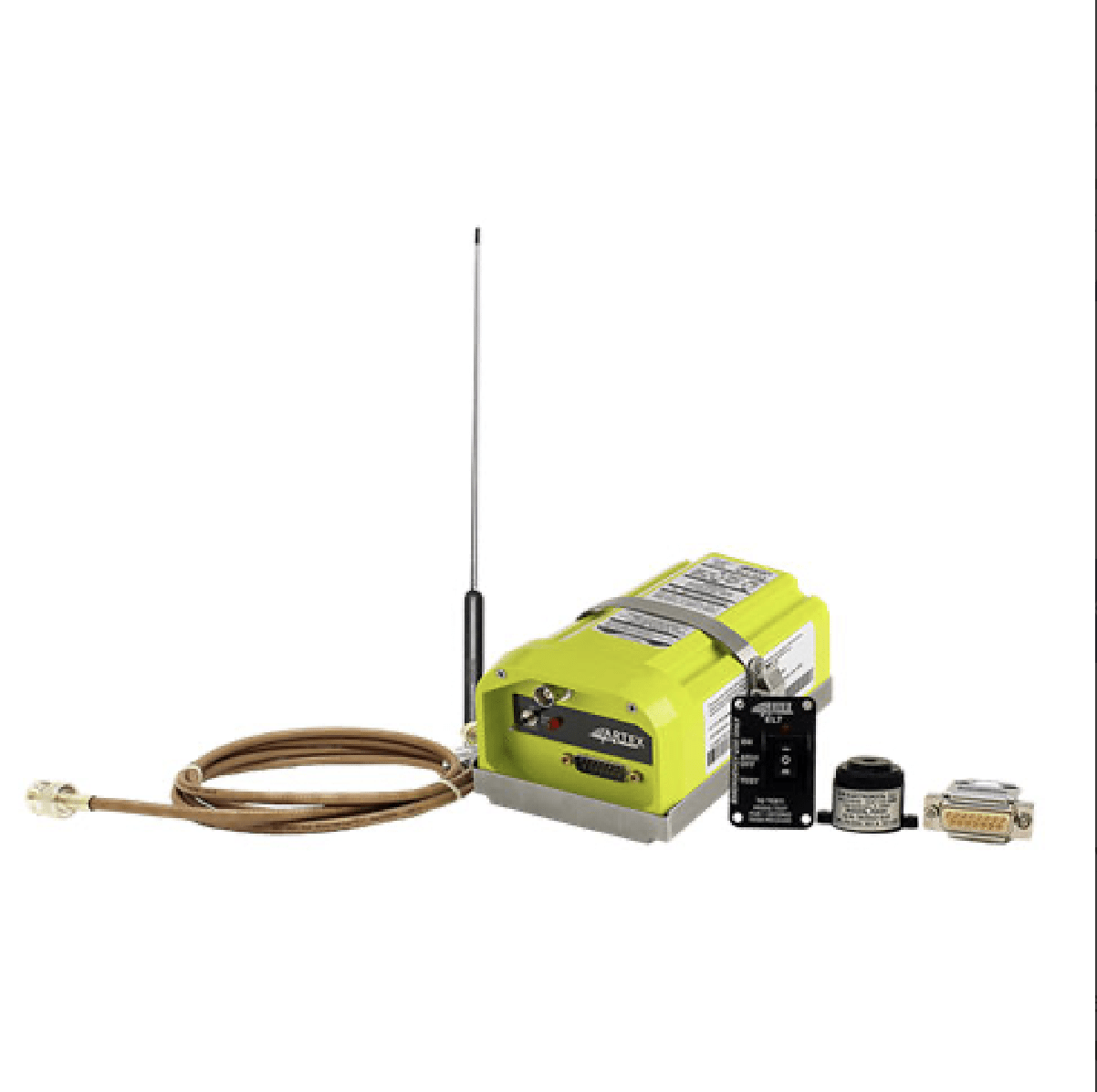

In the Box:

• ELT 345
• Remote switch panel (Hookup wires not included)
• Whip antenna – Rated to 250 knots
• Coaxial cable
• Mounting tray
• Buzzer
• Battery
