High-intensity aircraft tail flood light engineered to illuminate the vertical stabilizer and company livery for enhanced ground visibility, ramp recognition, and night operations. Built for the demanding duty cycle of commercial and corporate aviation, this OEM/PMA-grade unit is a direct-replacement assembly ready for installation.
Overview

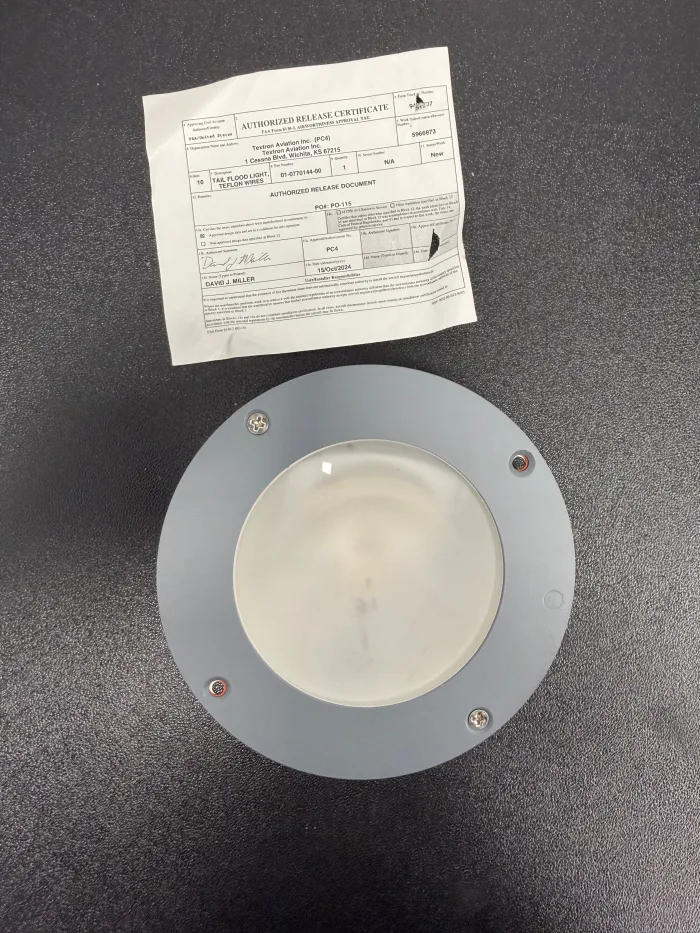

The 01-0770144-00 Tail Flood Light projects a wide, even beam onto the tail surface, making aircraft identification effortless on dark ramps and during pushback. Beyond aesthetics, illuminated tail logos serve a practical safety role — improving conspicuity to ground crew, taxiing aircraft, and ATC visual scanning.
Key Features
- Wide-beam flood pattern — uniform tail illumination without hot spots or dark zones
- Aviation-grade housing — sealed against moisture, vibration, and temperature extremes encountered at altitude
- Long service life — engineered for the extended on-time duty typical of logo light operation
- Direct replacement — drop-in fitment for applicable airframe installations
- Low maintenance — sealed assembly minimizes ramp-level service requirements
Typical Applications
- Vertical stabilizer logo / livery illumination
- Tail recognition lighting for corporate and commercial aircraft
- Night ramp and pushback conspicuity
- Aircraft branding visibility for fleet operators
Confirm specific airframe applicability against the applicable IPC, AMM, or STC documentation before installation.
Installation Notes
- Reference: Follow the applicable AMM / WDM for removal, installation, and rigging procedures
- Electrical: Verify bus voltage, current draw, and circuit breaker rating match the unit’s specifications before energizing
- Aiming: Adjust beam alignment per maintenance manual to achieve specified tail coverage
- Sealing: Inspect and replace mounting gaskets/O-rings as required to maintain environmental seal
- Functional check: Verify operation through normal and emergency electrical configurations as applicable
Handling & Care
- Avoid touching the lens or reflector surfaces with bare hands — skin oils can degrade optical performance and shorten lamp life
- Store in original packaging until installation to prevent lens scratches or contamination
- Inspect electrical connector pins for corrosion or damage before mating
Specifications
| Attribute | Detail |
|---|---|
| Part Number | 01-0770144-00 |
| Description | Tail Flood Light |
| Type | Complete Assembly |
| Application | Vertical stabilizer / logo illumination |
| Condition | New, factory-sealed |
| Documentation | Available per applicable airworthiness requirements |
Compliance & Documentation
- Supplied in full compliance with ITAR / EAR export regulations
- FAA 8130-3 or manufacturer Certificate of Conformity available upon request (subject to availability)
- Shipped from Orlando, FL with worldwide delivery and full export documentation support
